JIAEN IGBT DISCRETE NEW PRODUCT RELEASE

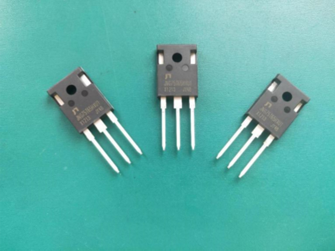

Jiaen Semi has launched new IGBT discretes -650V 75A & 650V 60A in TO-247 package . The two model adopts trench + field stop technology. They are with lower losses and higher energy efficiency for application such as solar inverter, servo drive amplifier and ups applications.
Features
◼ VCE(sat)(typ.)=1.9V@VGE=15V,IC=75A
◼ High speed switching
◼ Positive VCE(on) Temperature Coefficient
◼ Trench & Field Stop Technology
Features
◼ 650V,60A
◼ VCE(sat)(typ.)=1.7V@VGE=15V,IC=60A
◼ High speed switching
◼ Higher system efficiency
◼ Soft current turn-off waveforms
